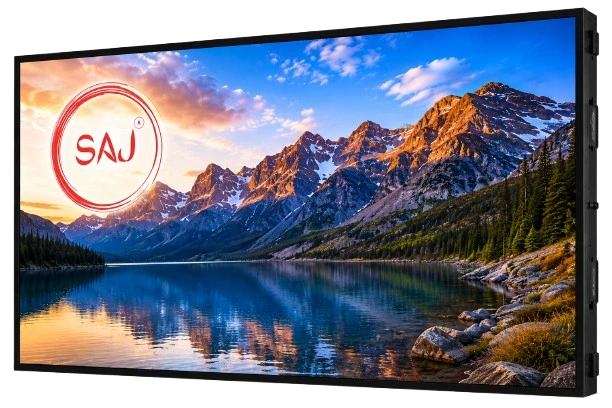

Outdoor LED Wall Solutions
High-Brightness, Weatherproof & Long-Life
Engineered for the Elements. Built for Impact.
Whether it’s a digital billboard, stadium display, or corporate facade, SAJ Info Solutions delivers outdoor LED walls that combine industrial-grade durability with stunning visual performance. Our displays are designed to perform in direct sunlight, rain, and extreme temperatures — without compromising on brightness or clarity.
From P2.5 to P10 pixel pitches, we offer tailored solutions for every viewing distance and installation requirement.
Key Features – Outdoor LED Screens
High Brightness
5,000 – 7,000 nits (visible even in direct sunlight)
High Refresh Rate
>3840Hz for flicker-free video recording
High Refresh Rate
>3840Hz for flicker-free video recording
MS Powder Coated Rugged Cabinet
Corrosion-resistant and impact-proof
Lifespan
>100,000 hours
Color Depth
16.7 million colors
Frame Frequency
60Hz
Video Support
2K HD, 4K UHD
Technical Specifications (Outdoor Modules)
| Parameter | P2.5 Outdoor | P3 Outdoor | P4 Outdoor | P5 Outdoor |
|---|---|---|---|---|
| Pixel Pitch | 2.5mm | 3.076mm | 4mm | 5mm |
| LED Type | SMD1515 | SMD1515 | SMD1921 | SMD1921 |
| Module Resolution | 128 × 64 | 104 × 52 | 80 × 40 | 64 × 32 |
| Module Dimension | 320 × 160mm (all models) | |||
| Module Weight | 0.45kg | 0.43kg | 0.49kg | 0.48kg |
| White Balance Brightness | 4000–4500 nits | 4500–5000 nits | 5000–5500 nits | 4500–5000 nits |
| Color Temp (CCT) | 6500K (1000K–9500K adjustable) | |||
| Beam Angle | 140° horizontal / 70° up, 40° down | |||
| Contrast Ratio | 5000:1 | |||
| Max Power Consumption | 879 W/m² | |||
| Avg Power Consumption | 264 W/m² | |||
| Refresh Rate | 1920Hz | |||
| Input Voltage | AC90~132V / AC186~264V, 47–63Hz | |||
| Working Temperature | -20°C ~ +50°C | |||
| Storage Temperature | -20°C ~ +55°C | |||
| Lifespan | >100,000 hours | |||
Why Choose SAJ Info Solutions for Outdoor LED?
- All-Weather Reliability – IP67 rated for rain, dust, and humidity
- 24/7 Support – WhatsApp, helpline, email, and live chat
- On-Site Technician Visit – Within 0–5 working days
- Remote Troubleshooting – Live video assistance available
- AMCs Available – Preventive maintenance and annual service contracts
- Original Project Imagery – Every image shown is our own work (copyright protected)
Outdoor LED FAQs
The best pixel pitch depends on your viewing distance. For close viewing between 2.5 to 10 meters, such as street-level storefronts or pedestrian signage, a smaller pitch like P2.5, P3, or P4 is recommended because it delivers sharper image quality and higher resolution. For longer distances beyond 10 meters, such as highway billboards or stadium screens, a larger pitch like P6, P8, or P10 is more cost-effective and performs excellently since the human eye cannot distinguish individual pixels from far away. SAJ Info Solutions offers a full range from P2.5 to P10 and provides free viewing distance consultation to help you choose the right option.
Yes, all our outdoor LED walls come with a minimum IP67 protection rating, which means they are completely dust-tight and can withstand heavy rain, water jets, and even temporary immersion without any damage. The cabinets are made from MS powder-coated rugged material that resists corrosion and impact, making them ideal for year-round outdoor use in monsoons, high humidity, and dusty environments. You can confidently install our displays on digital billboards, stadium perimeters, and public information boards without worrying about weather-related failures.
Our outdoor LED walls deliver exceptional brightness ranging from 5,000 to 7,000 nits, which is more than sufficient for direct sunlight visibility. Unlike indoor screens that operate at only 700 to 1,400 nits and become completely washed out in daylight, our displays maintain vivid colors, deep contrast, and clear content readability even during the brightest midday sun. This high brightness level ensures your advertising or messaging remains impactful and visible at all times of the day.
Our outdoor LED products are rated for a lifespan exceeding 100,000 hours of continuous operation, which translates to over 11 years of 24/7 use and even longer in typical real-world applications. SAJ Info Solutions provides complete after-sales support including annual maintenance contracts, on-site technician visits within 0 to 5 working days, remote troubleshooting via live video assistance, and multi-channel complaint registration through WhatsApp, helpline, email, and website form. We also provide real-time service reports and visit updates via SMS and WhatsApp for complete transparency.
Getting a quote is simple and can be done through multiple channels. You can call our dedicated helpline at +91 93114 27909, send an email with your requirements to info@sajinfosolutions.com, or send the word “Hi” on WhatsApp to start an automated guided process that captures your screen size, pixel pitch preference, and installation location before connecting you with a live agent. You can also fill out the website form on our contact page. Once we receive your requirements, we provide a detailed quote including product cost, installation charges, warranty terms, and optional annual maintenance contract pricing within one working day.
